INTRODUCING THE NEWEST BENCH PLATFORM FROM CAR-O-LINER

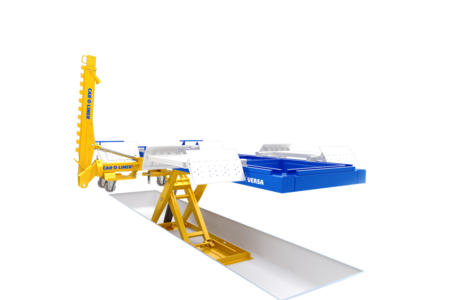

The BenchRack™ Versa

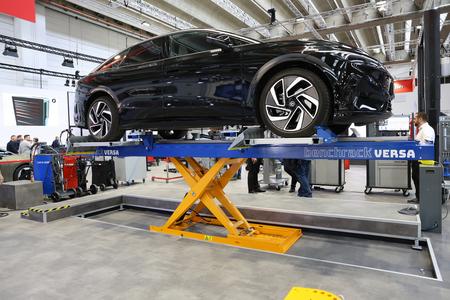

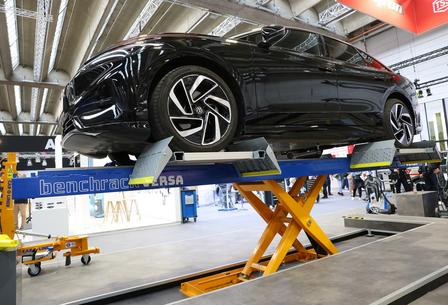

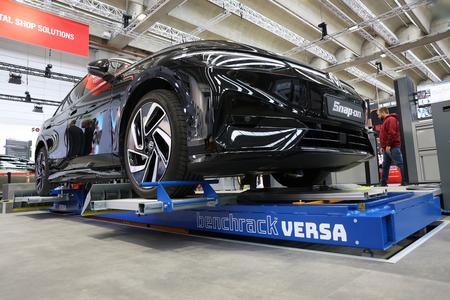

The BenchRack™ Versa ensures unparalleled accessibility, accommodating vehicles of any shape or size with ease. This sophisticated system offers complete 360° access for the Draw Aligner, enabling technicians to execute intricate repairs with remarkable precision, thereby reducing cycle times and enhancing overall repair efficiency.

Engineered as a state-of-the-art in-ground straightening system, the BenchRack™ Versa is designed to handle both unibody and full-frame vehicles effortlessly. Its versatile design integrates seamlessly into any workshop environment, ensuring an impeccable fit for every repair requirement.Type your paragraph here.


ACCURATE REAL-TIME MEASURING — When used with CAR-O-TRONIC® VISION2™ X3 and CAR-O-DATA® electronic measuring system

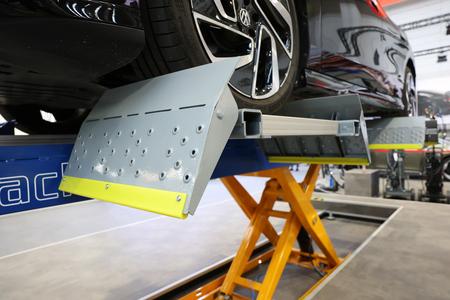

EFFICIENT ANCHORING AND HOLDING - with the EVO™ universal system - no vehicle-specific equipment required



• Maximum vehicle weight 4,500kg |10,000 lbs.
• Maximum lifting height 1,450mm | 58.25”
• Minimum height (equipment height) 280mm | 11”
• Lifting time 50 seconds
• Lift dimensions 5,520 x 1,170mm | 216” x 46”
• Weight (lift + 5500 frame) 1,300kg | 2,870 lbs.
• Ramp width range (three positions) 1,175-2,235mm | 46.26’’- 87.99’’
• Power unit 290 bar
• T608 UL/CSA version 220 V, 1 ph, 60 Hz
